Description

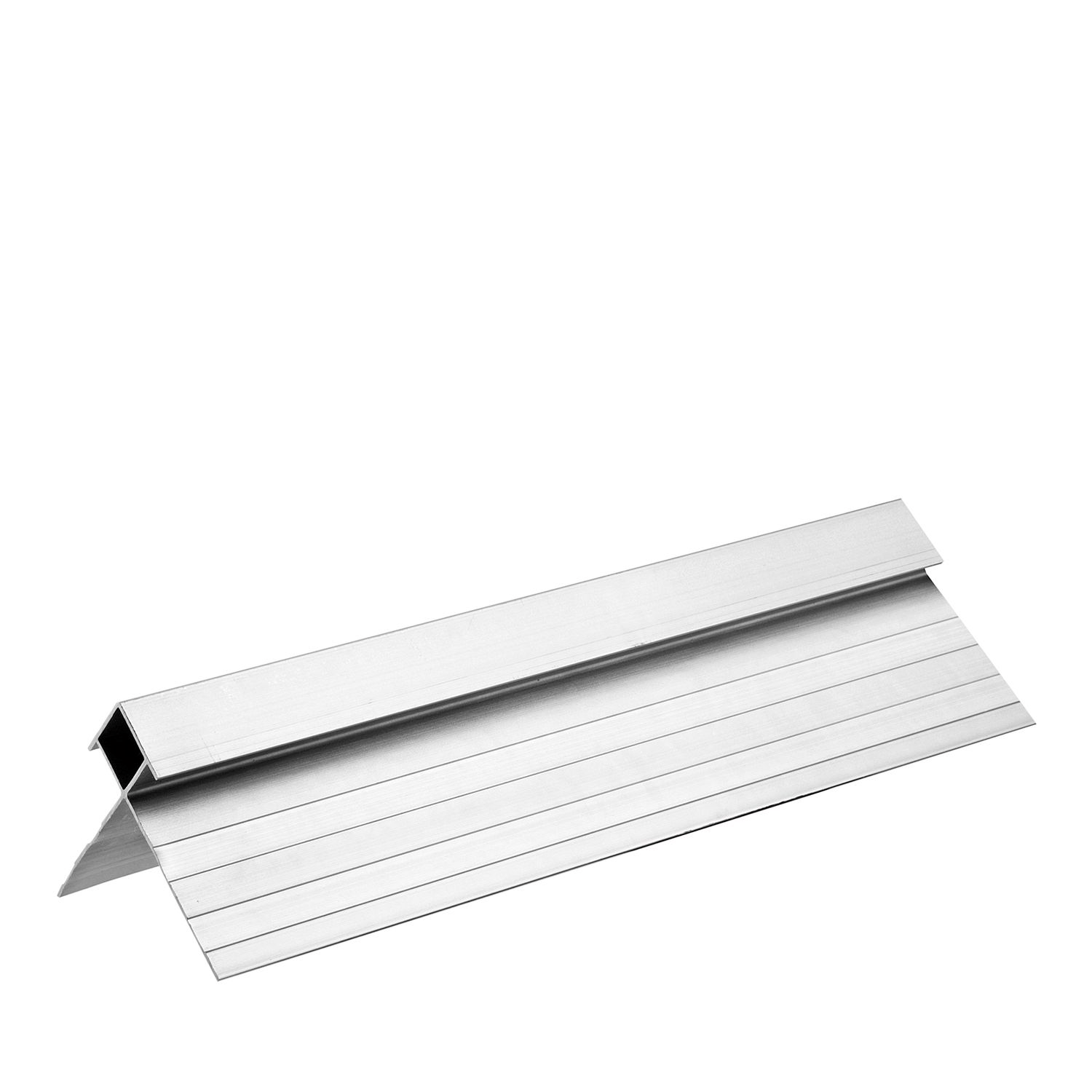

The James Hardie 14mm aluminium external box corner is a ready to paint aluminium extrusion, 3000 mm long. It forms a boxed outside corner where two walls of Stria Cladding meet. James Hardie product code 305519.

Key facts

  • Length: 3000 mm
  • For: 14 mm James Hardie Stria Cladding
  • Material: aluminium extrusion, ready to paint
  • Weight: about 1.5 kg per length
  • Sold as: single length (James Hardie packs them in fives)

What it is used for

Finishing the external corners of walls clad in Stria Cladding. The boards stop at the corner piece on each wall, which gives a square, boxed corner. For inside corners, see the James Hardie 14mm aluminium internal corner.

Installation

James Hardie's Stria Cladding installation guide shows the corner fixed with 40 mm fibre cement nails at 300 mm vertical centres in both flanges. The boards are then installed with a nominal 2 mm gap to the aluminium corner, and the gap is sealed with Hardie Joint Sealant. Paint the corner with the cladding. Follow the current James Hardie guide for the full corner detail, including the flashing behind it.

Common questions

How many lengths do I need?

James Hardie's rule is wall height times the number of external corners, divided by 3000 mm. For example, four corners on a 2.7 m high wall is 10.8 m, so order four lengths.

Does it need painting?

Yes. It is supplied ready to paint and is painted on site with the cladding.

Does it suit other cladding?

James Hardie lists it as the external box corner for Stria Cladding. For 8.5 to 9 mm panels such as Axon or Hardie Fine Texture, see the 9mm aluminium external square corner.

Can I pick it up or get it delivered?

Yes. Pick up from our yard at 10 Lancaster Street, Ingleburn, or we can deliver across Sydney.

Specifications
Brand
Alpha Timber
Product type
Cladding
Title options
Default Title
SKU
305519
Prices
Include GST
Ask a human expert

Not sure on size, length or quantity? Talk to our team — Mon–Fri 6am–4pm, Sat 6am–3pm.

Call 02 4605 0215

Delivery & Click + Collect

Pick up from 10 Lancaster Street, Ingleburn, or have it delivered to site across Greater Sydney. Ask us for a delivery price to your site.

Delivery & collection details

James Hardie Stria 14mm aluminium external box corner 3000mm

SKU 305519 Only 1 left in stock
Price $99.00each inc. GST
Trade account Apply for trade pricing

3000 mm James Hardie 14mm aluminium external box corner for Stria Cladding. A ready to paint aluminium extrusion that finishes the outside corners of the wall. Sold as a single length.

Trade customer? Log in or apply for account pricing & 30-day credit.Trade login
Quantity
Need a whole-job price? Send us your plans.Request a quote

You May Also Like

All prices include GST
Full specifications
Length
3000 mm
Suits
James Hardie Stria Cladding, 14 mm
Material
Aluminium extrusion
Finish
Ready to paint
Fixing
40 mm fibre cement nails at 300 mm centres in both flanges (James Hardie guide)
Weight
About 1.5 kg per length
Sold as
Single length
Typical use
External corners on Stria Cladding
