Description

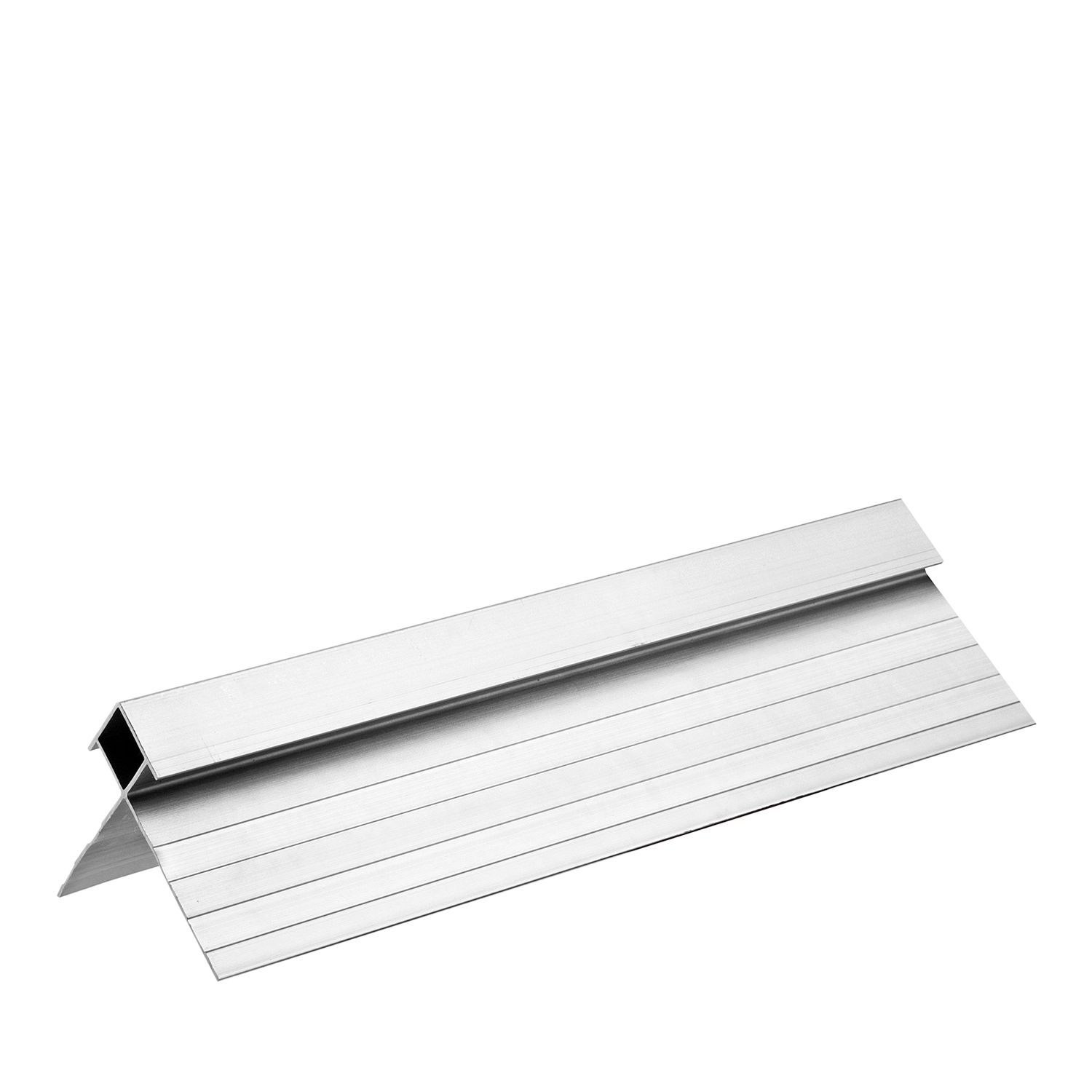

The Hardie 9mm aluminium external square corner is a 3000 mm aluminium trim that finishes the outside corners of James Hardie panel cladding. It suits cladding panels 8.5 to 9 mm thick and gives 10 mm of coverage over the panel edges.

Key facts

  • Brand: James Hardie, product code 306100
  • Length: 3000 mm (3.0 m)
  • Material: aluminium
  • Suits cladding panels 8.5 to 9 mm thick
  • Coverage: 10 mm
  • Finish: ready to paint after installation
  • Weight: about 1.8 kg per length
  • Sold as: single length

What it is used for

External (outside) corners where two walls of 9 mm fibre cement panel cladding meet. James Hardie lists it as compatible with Axon cladding, Hardie Fine Texture cladding and Hardie Brushed Concrete cladding. It covers the cut panel edges and gives a straight, square corner line.

Installation

Fit the corner as shown in the James Hardie installation guide for the cladding you are using. The guide sets out the fixing, sealing and clearances for that system. Cut the aluminium with a hacksaw or a fine-tooth metal blade and remove any burrs. Paint it after installation, along with the cladding. For 14 mm cladding, use the Hardie 14mm aluminium external corner instead.

Common questions

Which cladding does this corner suit?

Panels 8.5 to 9 mm thick. James Hardie lists Axon, Hardie Fine Texture and Hardie Brushed Concrete cladding.

How many lengths do I need?

Each length is 3000 mm. A wall up to 3.0 m high needs one length per external corner. Allow extra for taller walls and offcuts.

Does it come painted?

No colour finish is stated by James Hardie. It is described as ready to paint after installation, so paint it with the cladding.

Can I pick it up or get it delivered?

Yes. Pick up from our yard at 10 Lancaster Street, Ingleburn, or have it delivered across Sydney with the rest of your order. Call (02) 4605 0215 to check stock.

Specifications
Brand
Alpha Timber
Product type
Cladding
Title options
Default Title
SKU
306100
Prices
Include GST
Ask a human expert

Not sure on size, length or quantity? Talk to our team — Mon–Fri 6am–4pm, Sat 6am–3pm.

Call 02 4605 0215

Delivery & Click + Collect

Pick up from 10 Lancaster Street, Ingleburn, or have it delivered to site across Greater Sydney. Ask us for a delivery price to your site.

Delivery & collection details

James Hardie 9mm aluminium external square corner 3000mm

SKU 306100 Only 7 left in stock
Price $89.00each inc. GST
Trade account Apply for trade pricing

3000 mm aluminium external square corner for 8.5 to 9 mm James Hardie panel cladding, including Axon, Fine Texture and Brushed Concrete. Ready to paint after installation.

Trade customer? Log in or apply for account pricing & 30-day credit.Trade login
Quantity
Need a whole-job price? Send us your plans.Request a quote

You May Also Like

All prices include GST
Full specifications
Length
3000 mm
Material
Aluminium
Suits cladding thickness
8.5 to 9 mm
Coverage
10 mm
Compatible cladding
Axon, Hardie Fine Texture, Hardie Brushed Concrete
Finish
Ready to paint after installation
Weight
About 1.8 kg per length
Sold as
Single 3.0 m length
Typical use
External corners of 9 mm fibre cement panel cladding
