Description

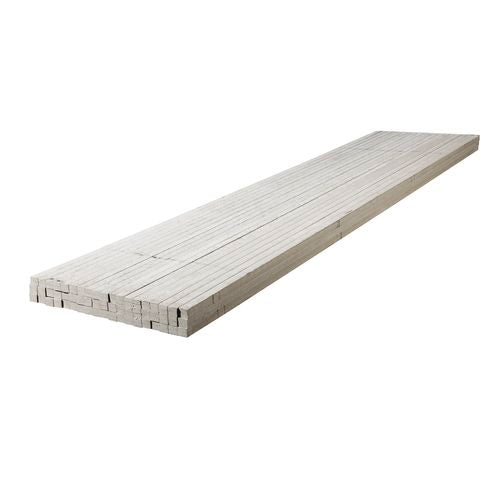

Hardie Axent Trim is a fibre cement trim from James Hardie, sold in 3000 mm lengths in 45 x 19, 45 x 38 and 89 x 38 mm. It is used for box corners and as decorative trim around windows and doors on fibre cement cladding.
Key facts
- Brand: James Hardie. Also known by its older name, Scyon Axent Trim
- Sizes: 45 x 19 mm (code 405260), 45 x 38 mm (code 405261) and 89 x 38 mm (code 405262)
- Length: 3000 mm (3.0 m)
- Material: fibre cement
- Finish: pre-sealed, with chamfered front faces. Paint after installation
- Weight per length: about 3 kg (45 x 19), 6 kg (45 x 38) and 12 kg (89 x 38)
- Sold as: single lengths
What it is used for
James Hardie's guide lists box corners, trim around windows and doors, finishing internal and external corners, covering butt joints and battens for a board and batten look. The guide shows it with cladding such as Hardie Fine Texture cladding, Hardie Brushed Concrete cladding and Linea Weatherboard. The cladding can butt up to the trim, or the trim can sit over the cladding.
Installation
Follow James Hardie's Axent Trim installation guide (March 2024), listed under this product's documents. In short:
- Fix the trim directly to timber framing, with two fasteners at each end.
- 19 mm trim: 50 mm 16 gauge brads at 150 mm centres, or 2.8 x 50 mm nails in pre-drilled holes at 300 mm centres.
- 38 mm trim: 62 mm 16 gauge brads at 150 mm centres, or 2.8 x 65 mm nails in pre-drilled holes at 300 mm centres.
- Gas nail guns are not suitable. James Hardie recommends stainless steel finishing nails.
- Prime edges cut on site before you fix the trim. Leave a gap of up to 2 mm at joints and seal with Hardie Joint Sealant.
- Keep the trim 150 mm clear of the ground and 50 mm clear of roofs, decks and paths.
- Paint within 3 months with at least two coats of quality acrylic paint. The trim must be dry before painting.
Fibre cement contains sand, a source of crystalline silica. Cut it outdoors with a dust-reducing method and wear a P1 or better respirator. The guide also covers steel framing and screw fixing.
Common questions
What sizes does Axent Trim come in here?
Three sizes, all 3000 mm long: 45 x 19 mm, 45 x 38 mm and 89 x 38 mm. Choose the size above.
How heavy is a length?
About 3 kg for 45 x 19, 6 kg for 45 x 38 and 12 kg for 89 x 38, from James Hardie's guide.
Does it need painting?
Yes. It comes pre-sealed, not finished. James Hardie asks for at least two coats of quality acrylic paint within 3 months of installing it.
Can I pick it up or get it delivered?
Yes. Pick up from our yard at 10 Lancaster Street, Ingleburn, or have it delivered across Sydney with the rest of your order. Call (02) 4605 0215 to check stock.
Specifications
- Brand
- Alpha Timber
- Product type
- Cladding
- Size options
- 45x19x3000mm, 45x38x3000mm, 89x38x3000mm
- SKU
- 405260
- Prices
- Include GST
Ask a human expert
Not sure on size, length or quantity? Talk to our team — Mon–Fri 6am–4pm, Sat 6am–3pm.
Delivery & Click + Collect
Pick up from 10 Lancaster Street, Ingleburn, or have it delivered to site across Greater Sydney. Ask us for a delivery price to your site.
Delivery & collection detailsJames Hardie Axent Trim 3000mm fibre cement trim, 45x19 to 89x38
3000 mm James Hardie Axent Trim, a pre-sealed fibre cement trim in 45 x 19, 45 x 38 and 89 x 38 mm. For box corners and trim around windows and doors.
Need a whole-job price? Send us your plans.Request a quote
You May Also Like
All prices include GSTFull specifications
- Sizes
- 45 x 19 mm, 45 x 38 mm, 89 x 38 mm
- Length
- 3000 mm
- Material
- Fibre cement
- Finish
- Pre-sealed, chamfered front faces, paint after installation
- Weight
- About 3 kg (45 x 19), 6 kg (45 x 38), 12 kg (89 x 38) per length
- Fixing
- To timber framing with brads, nails or screws, as set out in James Hardie's guide
- Sold as
- Single 3.0 m length
- Typical use
- Box corners and trim around windows and doors on fibre cement cladding
