Description

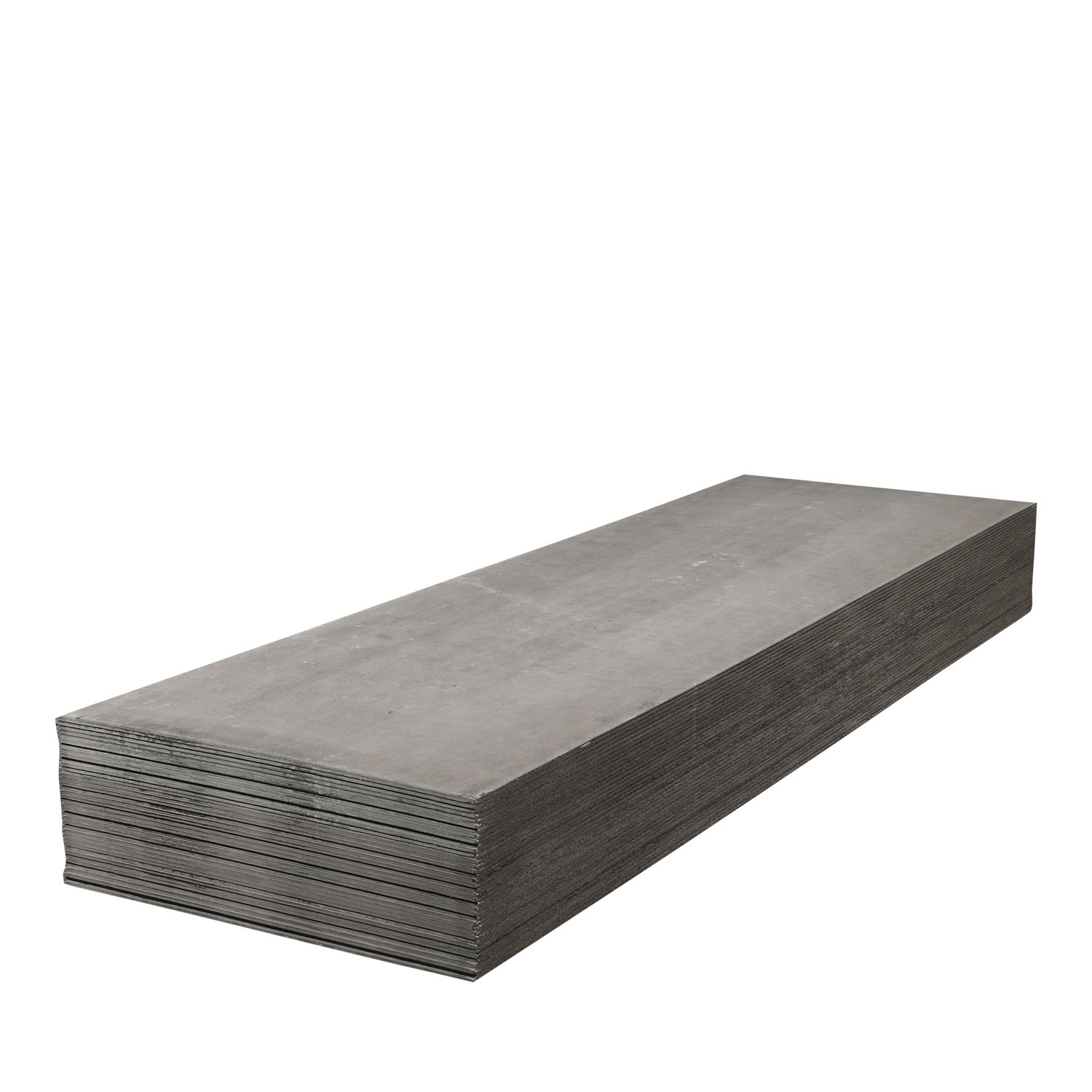

James Hardie EasyLap panel is an 8.5 mm pre-primed fibre cement cladding sheet with a shiplap joint along its two long edges. It is fixed vertically to timber or steel framed walls and finished on site with a roll-on textured acrylic paint for a rendered look.
Key facts
- Thickness: 8.5 mm
- Sizes: 2440 x 1200 mm, 3000 x 900 mm, 3000 x 1200 mm and 3600 x 1200 mm
- Material: fibre cement, pre-primed
- Edges: shiplap joint on the two long edges
- Weight (James Hardie, approximate): 38 kg (2440 x 1200), 35 kg (3000 x 900), 47 kg (3000 x 1200), 56 kg (3600 x 1200). About 13 kg per m²
- Coverage per sheet: 2.93 m², 2.7 m², 3.6 m² and 4.32 m²
What it is used for
External wall cladding on houses and medium-density residential buildings, including alterations and additions. James Hardie's guide covers fixing direct to the frame or over cavity battens, on timber or light gauge steel framing.
Installation
- Panels run vertically. Stud or batten spacing depends on the wind class of the site: 600 mm maximum for N1 to N4, closer for higher wind classes.
- Run a bead of joint sealant along the shiplap edge and use sealing tape behind vertical joints, as shown in the guide.
- Keep at least 150 mm clearance between the bottom of the cladding and the ground.
- Paint within 3 months of fixing, or within 7 days if the site is within 1 km of the coast.
- Fibre cement dust contains silica. Cut outdoors with a dust-reducing saw and vacuum extraction, wear a P2 respirator, and never use a grinder or dry sweep the dust.
Follow the current James Hardie EasyLap Panel installation guide for framing, fixings and weatherproofing. For anything structural or fire rated, check with your building designer or engineer.
Common questions
How heavy is a sheet of EasyLap?
James Hardie lists about 38 kg for a 2440 x 1200 sheet, 47 kg for 3000 x 1200 and 56 kg for 3600 x 1200. Plan on two people to carry and fix the larger sheets.
Does EasyLap need painting?
Yes. The panel comes pre-primed and is finished on site with a roll-on textured acrylic paint. James Hardie says to paint within 3 months of fixing, or within 7 days near the coast.
How many sheets do I need?
Divide the wall area by the sheet coverage: 2.93 m² for 2440 x 1200, 3.6 m² for 3000 x 1200 and 4.32 m² for 3600 x 1200. Allow extra for offcuts around windows and doors.
Can I pick it up or get it delivered?
Yes. Pick up from our yard at 10 Lancaster Street, Ingleburn, or ask us about delivery across Sydney. Call (02) 4605 0215 to check stock on the size you need.
Specifications
- Brand
- James Hardie
- Product type
- Cladding
- Size options
- 2440x1200x8.5mm, 3000x900x8.5mm, 3000x1200x8.5mm, 3600x1200x8.5mm
- SKU
- 404184
- Prices
- Include GST
Ask a human expert
Not sure on size, length or quantity? Talk to our team — Mon–Fri 6am–4pm, Sat 6am–3pm.
Delivery & Click + Collect
Pick up from 10 Lancaster Street, Ingleburn, or have it delivered to site across Greater Sydney. Ask us for a delivery price to your site.
Delivery & collection detailsJames Hardie EasyLap panel 8.5mm fibre cement cladding
8.5 mm James Hardie EasyLap fibre cement cladding panel, pre-primed, with shiplap long edges. Four sheet sizes from 2440 x 1200 to 3600 x 1200 mm. Painted on site with textured acrylic for a rendered look.
Need a whole-job price? Send us your plans.Request a quote
You May Also Like
All prices include GSTFull specifications
- Thickness
- 8.5 mm
- Sheet sizes
- 2440 x 1200, 3000 x 900, 3000 x 1200 and 3600 x 1200 mm
- Material
- Fibre cement
- Finish
- Pre-primed. Painted on site with roll-on textured acrylic
- Edges
- Shiplap joint on the two long edges
- Weight
- About 38 kg (2440 x 1200), 35 kg (3000 x 900), 47 kg (3000 x 1200), 56 kg (3600 x 1200)
- Coverage
- 2.93, 2.7, 3.6 and 4.32 m² per sheet
- Sold as
- Single sheet
- Typical use
- External wall cladding on residential buildings
- CodeMark
- CM40298, as stated in James Hardie's installation guide
