Description

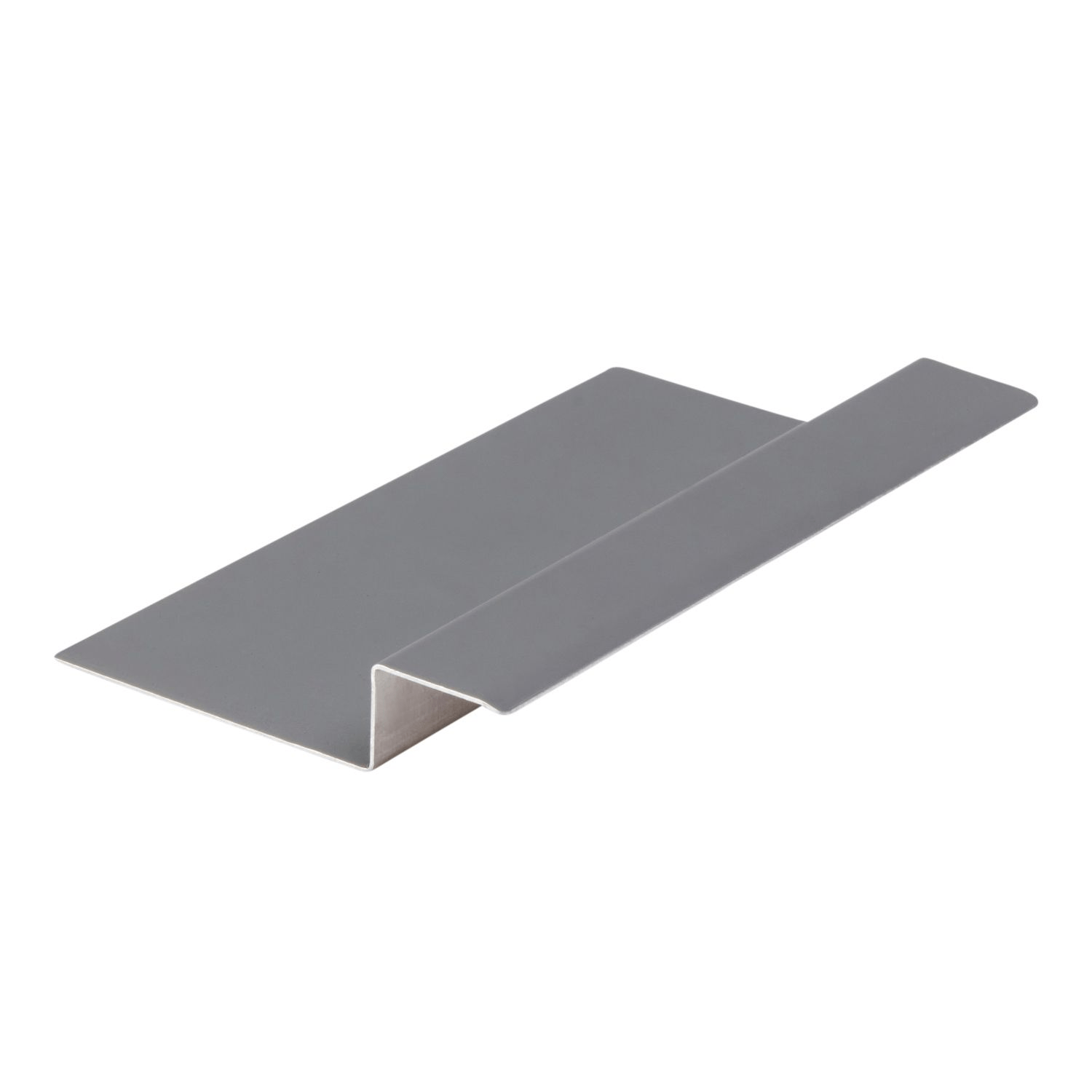

This is the James Hardie 9 mm aluminium horizontal h jointer, a ready to paint aluminium piece that joins two lengths of Hardie 9mm Aluminium Horizontal h Flashing end to end. It covers the join where one length of flashing stops and the next one starts.

Key facts

  • Type: jointer for Hardie 9mm Aluminium Horizontal h Flashing
  • Material: aluminium
  • Finish: ready to paint after installation
  • Used on: Axon Cladding and EasyLap Panel walls (both James Hardie installation guides list it)
  • James Hardie product code: 305614
  • Pack: James Hardie supplies them in packs of 10. Call us to confirm whether you are buying one jointer or a pack

What it is used for

On Axon Cladding and EasyLap Panel walls, James Hardie's h flashing is an aluminium extrusion used along horizontal control joints, for example at floor level on a two storey wall. The flashing comes in 3000 mm lengths. Where two lengths meet, this jointer goes over the join. It joins flashing to flashing. It does not join the cladding panels themselves.

Installation

These points come from James Hardie's Axon Cladding installation guide (September 2026) and EasyLap Panel installation guide (October 2026), attached to this page.

  • Join the h flashings on an intermediate stud, not off the stud and not behind a sheet join.
  • Leave a 2 mm gap between the two flashings behind the jointer.
  • Apply a continuous bead of Hardie Joint Sealant vertically between the h flashing and the jointer, 10 mm in from the ends.
  • Adhere the jointer over the join.
  • Paint it with the wall after installation.

Follow the current guide for the full horizontal joint detail, including how the flashing is fixed and how the weather barrier laps over it.

Common questions

What does this jointer join?

Two lengths of Hardie 9mm Aluminium Horizontal h Flashing, end to end. It is not a jointer for the panels.

How many do I need?

One for each place where two lengths of h flashing meet. James Hardie works out the flashing as the length of the horizontal joints divided by 3000 mm, so a straight run needs one jointer fewer than it has flashing lengths.

Is it sold singly or by the pack?

James Hardie supplies these jointers in packs of 10. Call us on (02) 4605 0215 before ordering to confirm whether the listing is for one jointer or a pack.

Can I pick it up or get it delivered?

Yes. Pick up from our yard at 10 Lancaster Street, Ingleburn, or have it delivered across Sydney with the rest of your cladding order.

Specifications
Brand
Alpha Timber
Product type
Cladding
Title options
Default Title
SKU
305614
Prices
Include GST
Ask a human expert

Not sure on size, length or quantity? Talk to our team — Mon–Fri 6am–4pm, Sat 6am–3pm.

Call 02 4605 0215

Delivery & Click + Collect

Pick up from 10 Lancaster Street, Ingleburn, or have it delivered to site across Greater Sydney. Ask us for a delivery price to your site.

Delivery & collection details

James Hardie 9mm aluminium horizontal h flashing jointer

SKU 305614 Only 9 left in stock
Price $2.43each inc. GST
Trade account Apply for trade pricing

9 mm aluminium horizontal h jointer by James Hardie. Joins two lengths of h flashing end to end on Axon and EasyLap walls. Supplied ready to paint.

Trade customer? Log in or apply for account pricing & 30-day credit.Trade login
Quantity
Need a whole-job price? Send us your plans.Request a quote

Full specifications
Type
Jointer for Hardie 9mm Aluminium Horizontal h Flashing
Material
Aluminium
Finish
Ready to paint
Used on
Axon Cladding and EasyLap Panel walls
Fixing
Adhered over the flashing join with Hardie Joint Sealant, 2 mm gap between flashings (James Hardie installation guides)
Maker's pack size
10 per pack
Typical use
Joining lengths of h flashing along horizontal control joints
