Description

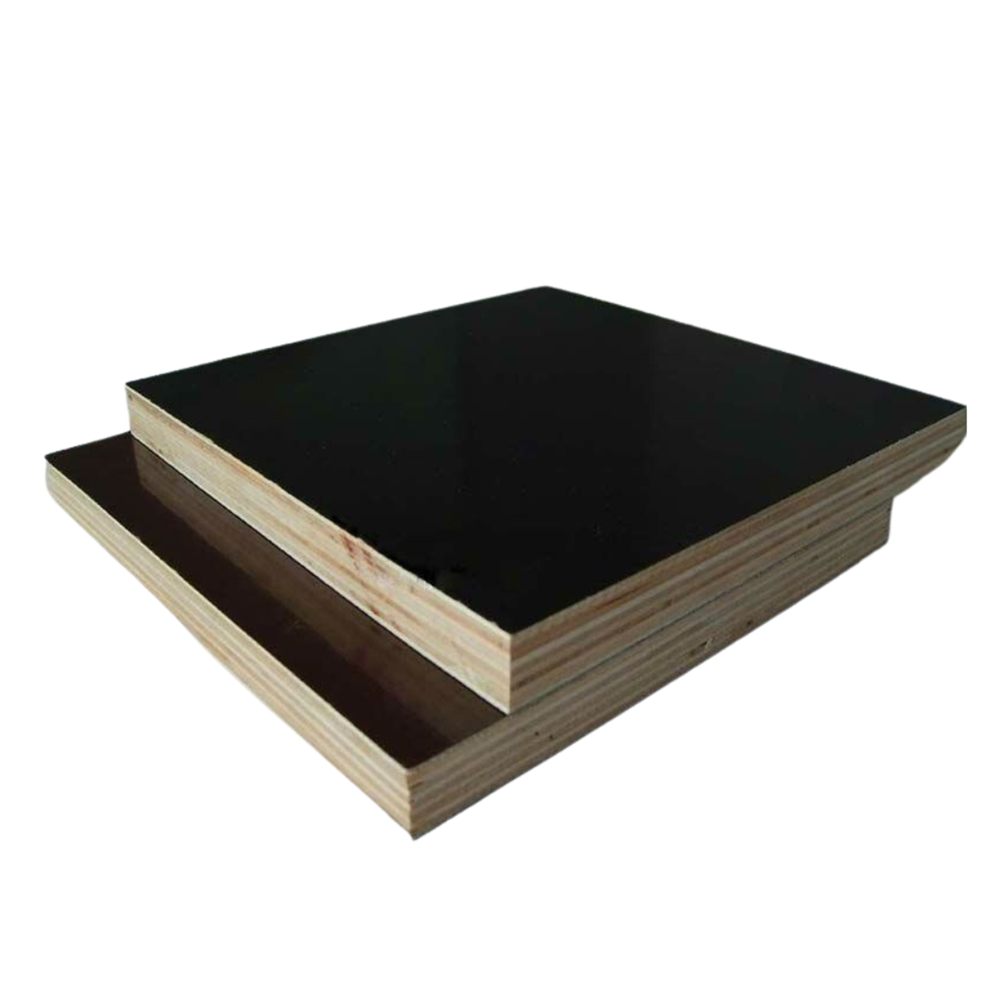

This is a 17 mm thick F17 formply sheet measuring 2400 x 1200 mm. Formply is plywood with a hard film face, made for concrete formwork, and F17 is its structural stress grade.

Each sheet covers 2.88 m² and weighs about 27.9 kg. It is sold by the single sheet from our Ingleburn store, for pick-up or delivery across Greater Sydney.

Key facts

  • Thickness: 17 mm
  • Sheet size: 2400 x 1200 mm (2.88 m² per sheet)
  • Stress grade: F17
  • Weight: about 27.9 kg per sheet

What it is used for

Builders and formworkers use 17 mm F17 formply for concrete formwork, including:

  • Slab and soffit formwork
  • Wall, column and beam forms
  • Footings, stairs and edge forms

The sheet thickness and the spacing of the supports behind it depend on the concrete pressure in your pour. Follow your formwork design or ask your engineer.

Working with formply

  • Seal cut edges and drilled holes so water does not get into the sheet.
  • Apply a form release agent before each pour and clean the face after stripping.
  • Store sheets flat, off the ground and under cover.
  • A full sheet weighs about 28 kg, so plan for a two-person lift.

Common questions

How many sheets of formply do I need?

Divide the area you need to form, in square metres, by 2.88, then round up and allow extra for cuts. For example, 30 m² needs 11 sheets before waste.

Can formply be reused?

Yes, formply is commonly reused. How many pours you get depends on how the sheets are stripped, cleaned, oiled and stored.

Can I pick it up or get it delivered?

You can pick up from 10 Lancaster Street, Ingleburn, or have it delivered to site across Greater Sydney. Call (02) 4605 0215 or message us on WhatsApp for a delivery price or a quote on larger quantities.

Specifications
Brand
Alpha Timber
Product type
Boards
Title options
Default Title
SKU
901579
Prices
Include GST
Ask a human expert

Not sure on size, length or quantity? Talk to our team — Mon–Fri 6am–4pm, Sat 6am–3pm.

Call 02 4605 0215

Delivery & Click + Collect

Pick up from 10 Lancaster Street, Ingleburn, or have it delivered to site across Greater Sydney. Ask us for a delivery price to your site.

Delivery & collection details

Formply 17mm F17 2400 x 1200mm Formwork Plywood Sheet

SKU 901579 141 in stock at Ingleburn
Price $65.00each inc. GST
Trade account Apply for trade pricing

17 mm F17 formply sheet, 2400 x 1200 mm, for concrete formwork such as slabs, walls, columns and beams. About 27.9 kg per sheet. Pick up from Ingleburn or get it delivered across Greater Sydney.

Trade customer? Log in or apply for account pricing & 30-day credit.Trade login
Quantity
Need a whole-job price? Send us your plans.Request a quote

Full specifications
Product
Formply (film-faced formwork plywood)
Thickness
17 mm
Sheet size
2400 x 1200 mm
Coverage
2.88 m² per sheet
Stress grade
F17
Weight
About 27.9 kg per sheet
Typical use
Concrete formwork: slabs, walls, columns, beams
Sold as
Single sheet
Pick-up
10 Lancaster Street, Ingleburn NSW
